Fire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mm

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

Fire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mm

  • 1
  • 2

Brand Name : Dorrenhaus, DORHAUS

Model Number : D30

Certification : UL228, CCC, ISO9001:2015

Place of Origin : Zhejiang, China

MOQ : 100 pcs

Price : USD20.50.00- USD22..00 / PC

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20,000pcs per month

Delivery Time : 5 weeks

Packaging Details : 1pc in 1 paper box, 10pcs in carton of 585*245*230mm, 40ctns in 1 wooden pallet size: 120*100cm

Main Keyword : Concealed Automatic Door Closer

Closing Force : # 3

Temperature Range : - 40 to 45 ℃

Functional Optional : Hold Open

Max. Door Width : 950mm

Door Weight : 40 - 65kg

Warranty : 3 years

Opening Angle : 150 degree

Contact Now



  Fire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mm



  •   Skilled Craft: smooth running, oil tight, no abnormal sound
  •   Large closing force size 3, optional for max. 80kg door
  •   Two steps speed adjustment of closing and latching



        Dorrenhaus concealed automatic door closer model D30, applicable for door width

        950mm, door thickness of 45mm and above, concealed fitting - best for reputable

        projects so as to avoid losses resulted from breach of contract.

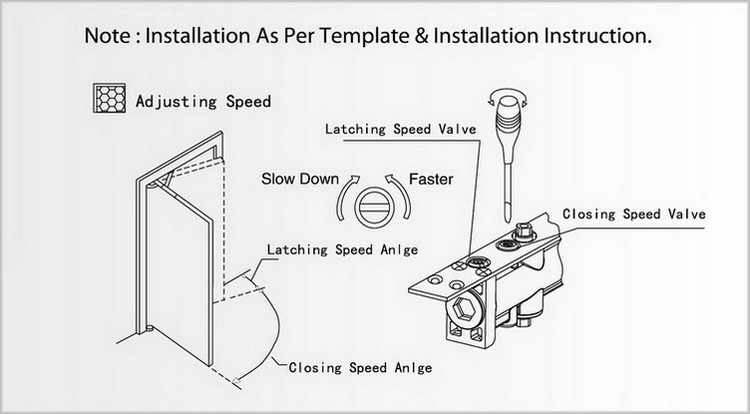

           Ω  Automatic closing and latching speed adjustable by double control valves

           Ω  Accord with standard of UL 228 Certification, 200,000+ life cycles tested

           Ω  Precise cast aluminum alloy closer body with anodized aluminum sliding

                track arm, hold open unit optional, which can be removed from rail easily

           Ω  Design for non-handed installation, Max opening angle: 150 degree

           Ω  Fuchs high grade hydraulic fluid for all weather operation and lubrication

           Ω  Closing power size 3, for max. door width 950mm or door weight 65kg

           Ω  Slim body with 32mm thickness, min. thickness of 45mm for wooden door

           Ω  Light duty concealed automatic fire door closer mainly for commercial use

           Ω  Meet the requirements of UL 10C Certification, up to 3 Hours Fire Rating



           ► 7 years cooperative manufacturer of global well-known security trade mark





                  Finishes: Painted - Silver, Bronze, White, Gold, Black, Brown



        * SPRING FORWARD, EASE BACK: The commercial-grade arm won’t interfere with opening

           while closing doors slowly enough to allow graceful entrance and exit

        * GENTLE, HANDS-FREE CLOSING: Let the door do the work. Enjoy automatic closing and

          latching, maintaining quiet and security





Model



Door

Width

Door

Weight

Body Size

(LxWxH)

Mounting

Dimension



D30



950mm 40-65kg

312*32*76mm

298*20mm

Closing

Power

Max. Door

Open Angle

Life Cycles

Tested

Fire Protection

Standard



Authentication



size 3 150º 200,000 UL 10C



UL 228





Fire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mmFire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mm

Fire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mm



Fire Concealed Automatic Door Closer Size 3 Closing Force Sliding Arm Door Thick 45mm
