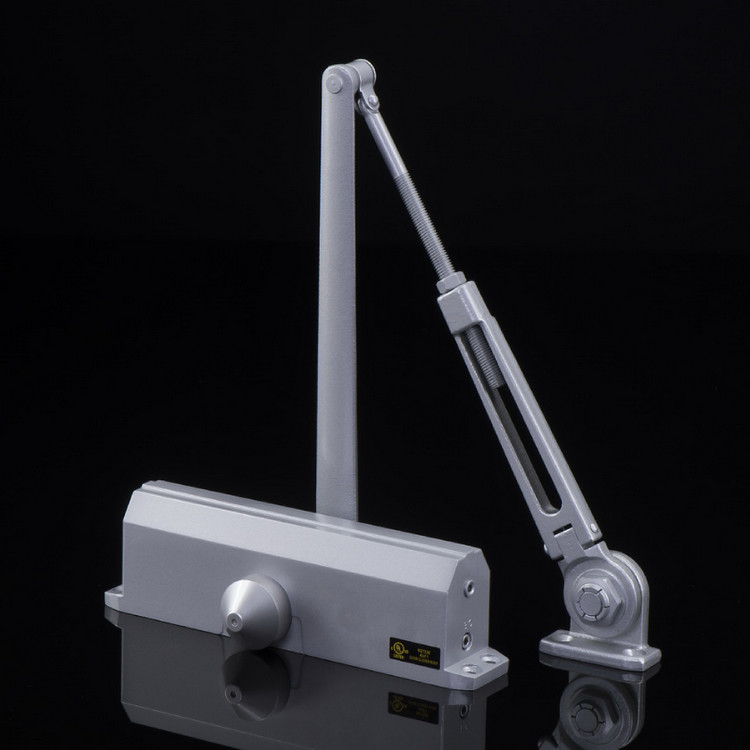

Metal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mm

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

Metal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mm

  • 1
  • 2

Brand Name : Dorrenhaus, DORHAUS

Model Number : D4016T

Certification : ISO9001:2015

Place of Origin : Zhejiang, China

MOQ : 100 sets

Price : USD23.50 - USD30.00 /set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20,000sets per month

Delivery Time : 5-6 weeks

Packaging Details : 1 set in 1 paper box, 10 sets in carton of 563*343*190mm, 30ctns in 1 wooden pallet size: 115*106cm

Primary Keyword : Commercial Hydraulic Door Closer

Applicable Weight : 20-150kg

Temperature Limit : -40 ℃ to 45 ℃

Max. Open Angle : 120 degree

Functions Optional : Hold-open

Width Range : 850-1500mm

Spring Strength : #1 - #6

Quality Guarantee : 3 years

Contact Now




   Metal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mm


  •  Consummate Craft: smooth running, oil tight and noiseless
  •  Adjusting closing & latching speed by dual regulating screws
  •  Long term cooperative supplier of world's top security brand


            Ω  Commercial hydraulic door closer, medium / heavy duty, with hold open arm
            Ω  Closer body meet ANSI 156.4 Grade 1, factory tested life cycles of 2 mils plus
            Ω  Universal application for regular, parallel and top jamb installation
            Ω  Adjustable spring power size 1 - 6 , width range 850-1500mm
            Ω  Precised cast aluminum cylinder and forged steel arm
            Ω  Standard plastic cover, handed metal cover optional
            Ω  Standard adjustable back-check valve
            Ω  Needle bearing, heat treated pinion

            ► Trusty cooperative partner of world's high-end door hardware brands


            Finishes - Painted: Silver, White, Black, Gold, Bronze, Brown

           * CERTIFIABLY RELIABLE: ANSI 156.4 - Grade 1 is the supreme standard that can be
              achieved by door closer. This one has actually surpassed a test to 2 million + cycles.
           * SOFT, NO NEED TO CLOSE BY HAND: the door will closer by itself, enjoy self-acting
              closing and locking, keep quiet and safety.
           * SPRING THRUST, EASY CLOSING: commercial-level swing arm will not impact opening,
              meanwhile shut doors gradually to allow for graceful entry and exit
           * ADJUSTABLE TO YOUR NEEDS: Let customers go their own pace. You get 6 levels of
              closing force to meet different level of traffic.
           * SUIT YOUR NEEDS: surface mounted model and full sets of screw package,allow you to
              install this over any high-traffic area, while providing complete control



Type


Width
Suitable

Weight
Suitable

Closer Size
(LxWxH)

Mounting Dim.


D4016


800-1500mm 20-150kg 246*44.5*69.5mm 230*19mm

Closing
Power

Max. Open
Angle

Life Cycles
of Hold
Open Arm

Body Life Cycles
Factory Tested


Production
Standard


size 1-6 120º 10,000


2,000,000+


ANSI 156.4
- Grade 1


Metal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mmMetal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mm
Metal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mm







Metal Commercial Hydraulic Door Closer Hold Open Arm Width Range 850-1500mm
