Medium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm Mounted

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

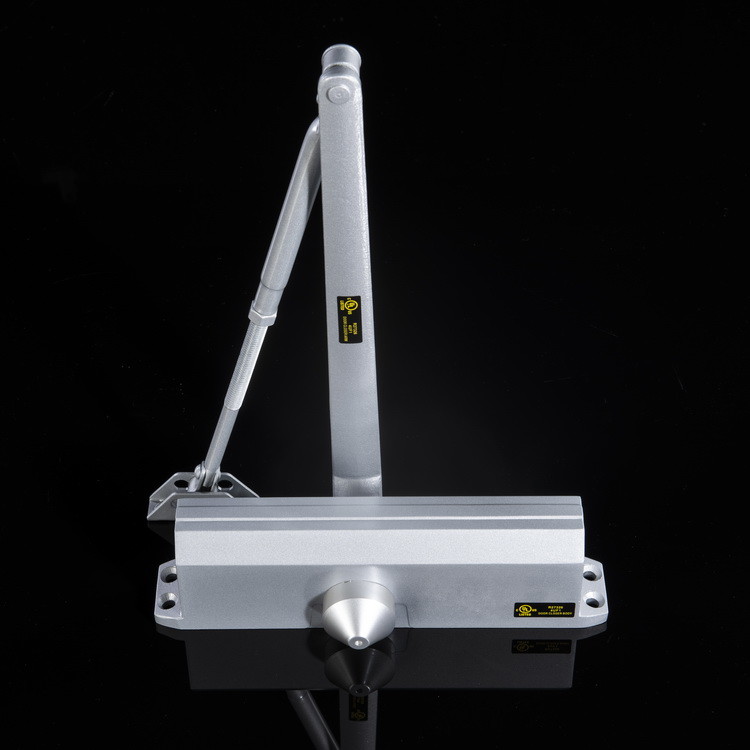

Medium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm Mounted

  • 1
  • 2
  • 3

Brand Name : DORHAUS, Dorrenhaus

Model Number : D4005, D4006, D4016

Certification : ANSI/BHMA A156.4 Grade 1

Place of Origin : China

MOQ : 100 sets

Price : USD15.50 - USD18.00 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20,000 sets per month

Delivery Time : around 30 days

Packaging Details : 1 set in 1 paper box, 10 sets in carton of 563*343*190mm, 30 ctns in 1 wooden pallet size: 115*106cm

Primary Keyword : Heavy Duty Hydraulic Door Closer

Spring Force : #5, #6, #1-6

Guarantee Period : 3 years

Max. Open Angle : 180 degree

Weight Range : 20-150 kg

emperature Limit : - 40 to 45 ℃

Optional Features : Hold Open

Max. Door Width : 850-1500 mm

Contact Now


   Medium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm Mounted


  •     Dorrenhaus - 7 years supplier to top worldwide brands
  •     ANSI A156.4 standard Grade 1, life cycles of 2 mils+
  •     Skilled Craft: smooth operation, oil tight, noiseless


           Ω  American style medium heavy duty hydraulic closer for commercial doors
           Ω  Dual regulating valves adjusting closing and latching speed separately
           Ω  Adjustable spring size 1 - 6, fixed closing force size 5 and size 6
           Ω  Suitable for all standard mounting methods including parallel arm mounting
           Ω  Hydraulic structure, needle bearing, twice heat treated rack and pinion
           Ω  Conform to UL 10C standard, up to 3 hours fire rating test
           Ω  Precised cast aluminum body and forged steel arm, hold open optional
           Ω  Standard adjustable backcheck available
           Ω  Durable closer lubricating oil for any climate running and constant lubrication.

            ► 7 years cooperative supplier of international first-rate security trade mark


           Closer Color - Aluminum, Bronze, Brown, White, Gold, Black
    * SOFT, NO NEED TO CLOSE BY HAND: the door will closer by itself, enjoy self-driven closing
       and latching, maintain quiet and security.
    * SPRING FORWARD, EASY BACK: the commercial-grade arm won’t interfere with opening,
       meanwhile shut doors gradually to allow for graceful entry and exit
    * FITS WHERE YOU NEED IT: Surface mounted design and full set of screw, allow you to install
       at different occasion, and is completely controlled.
    * SIZE ADJUSTABLE AS PER YOUR REQUIREMENT: final user will make their decision, will
       get 6 levels of closing power to suit any level of traffic

    * RELIABLE CERTIFIABLY : ANSI 156.4 - Grade 1 is the highest standard that can be

       achieved by door closer. This model is actually super passed 2 million+ cycles testing.



Model

Width
Suitable
Weight
Suitable
Closer Size
(LxWxH)
Mounting
Dimension


D4016


800-1500mm 20-150kg 246*44.5*69.5mm 230*19mm

D4005

1200mm 80-120kg 246*44.5*69.5mm 230*19mm

D4006

1500mm 120-150kg 246*44.5*69.5mm 230*19mm


Medium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm MountedMedium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm Mounted
Medium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm Mounted

Medium Heavy Duty Hydraulic Door Closer Size 5 / 6 / 1 - 6 Parallel Arm Mounted
