Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door

  • 1
  • 2
  • 3

Brand Name : DORHAUS, Dorrenhaus

Model Number : D803

Certification : CE EN1154, ISO9001:2015

Place of Origin : Zhejiang, China

MOQ : 100 pcs

Price : USD10.50-USD11.50/pc

Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram

Supply Ability : 10,000pcs per month

Delivery Time : 5 weeks

Packaging Details : 1pc in 1 paper box, 10pcs in 1 carton, 42ctns in 1 wooden pallet size: 116*92cm

Key Words : Overhead Hydraulic Door Closer

Working Temp. : - 40℃ to 45℃

Assurance Period : 3 years

Weight Range : 25-85kg

Function Alternate : Backcheck, HO

Door Width : 850-1100mm

Open Angle Limit : 180º for size 2/3, 105º for size 4

Spring Strength : # 3, closing force #2-4

Contact Now


    Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door


  •   Skilled workmanship: even operation, oil tight, no noise
  •   BS EN1154 standard, tested life cycles of 500,000 plus
  •   Two speed adjusable, closing force 2-4 adjustable

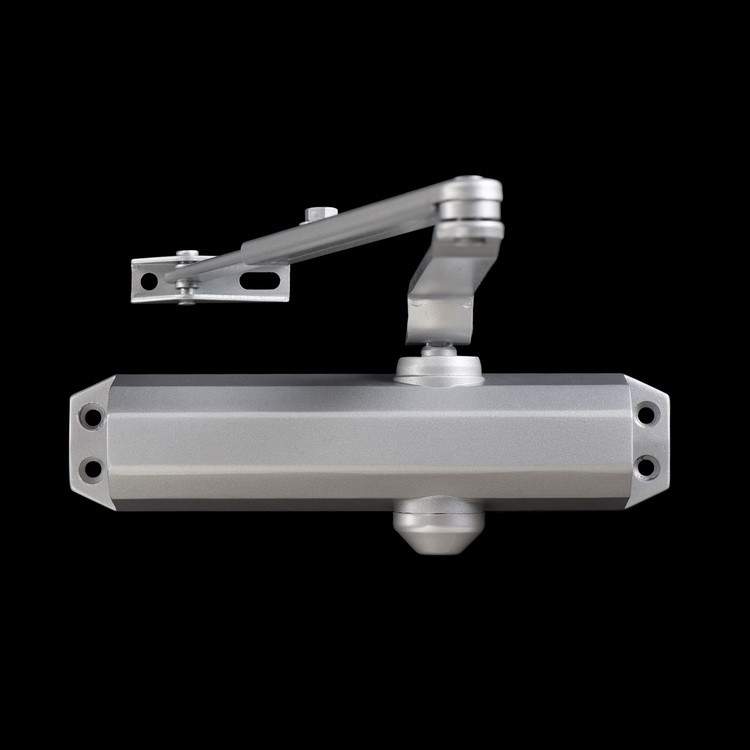

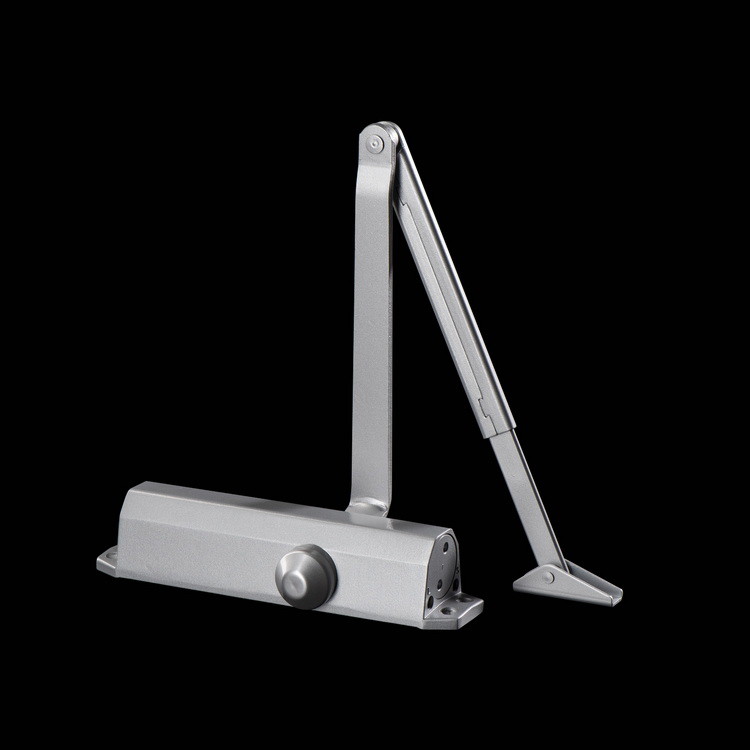

          Dorhaus model D803 is both European style and economical model, it's overhead
          mounted closer, with hydraulic structure, needle bearing, dual heat treatment rack
          and pinion, the factory tested life cycles of this model is more than CE standard:
          500,000 times. High grade Fuchs lubricating fluid also assure smooth operation
          and constant lubrication.

           Ω  Precised casting aluminum closer shell with adjustable steel flat rocking arm
           Ω  Adjustable closing and latching speed controlled by dual regulating screws
           Ω  Automatic backcheck function alternative, hold open arm function optional
           Ω  Opening angle limit: 180 degree, mostly set between 90º and 120 degree
           Ω  Fixed spring size #3, closing size 2-4 adjustable by template and towards of
                rocker arm bracket, suitable for door weight  25-85kg or door width 1100mm
           Ω  No need to close manually, designed for all 3 standard installation methods
           Ω  Eurospec medium duty overhead hydraulic door closer for residential door
           Ω  Accord with BS EN1634 standard for fire swing door, up to 2 hours fire rating

           ► Long-term cooperative supplier of universal first-rate door hardware enterprises


              Closer Color - Silver, Brown, Bronze, Gold, White, Black

            * SPRING FORWARD, EASY CLOSING: commercial-level swing arm won’t interfere with
               opening, while closing doors slowly enough to allow graceful entrance and exit
            * GENTLE, NO NEED TO CLOSE BY HAND: let the door close by itself, enjoy self-acting
               closing and locking, keep quiet and sureness.

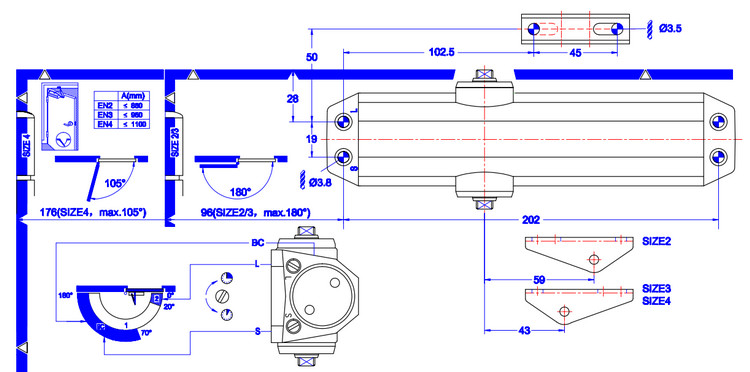

Model


Width
Suitable

Applicable
Weight

Closer Spec.
(LxWxH)

Installation Dim.


D803


850-1100mm 25-85kg

220*48*45mm

202*19 mm

Closing
Force

Max. Open
Angle

Standard Fire Proof

Product
Authentication


Optional Feature



size 2-4


105º for size 4

180º for size 2/3

EN 1634 CE EN1154

Back Check
Hold Open


Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg DoorOverhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door
Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door
Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door
Overhead Hydraulic Door Closer Eurospec Adjustable Size 2 - 4 for 25 - 85kg Door
