Smooth Overhead Hydraulic Door Closer Size 3 Closing Power For Wooden Door CE Listed

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

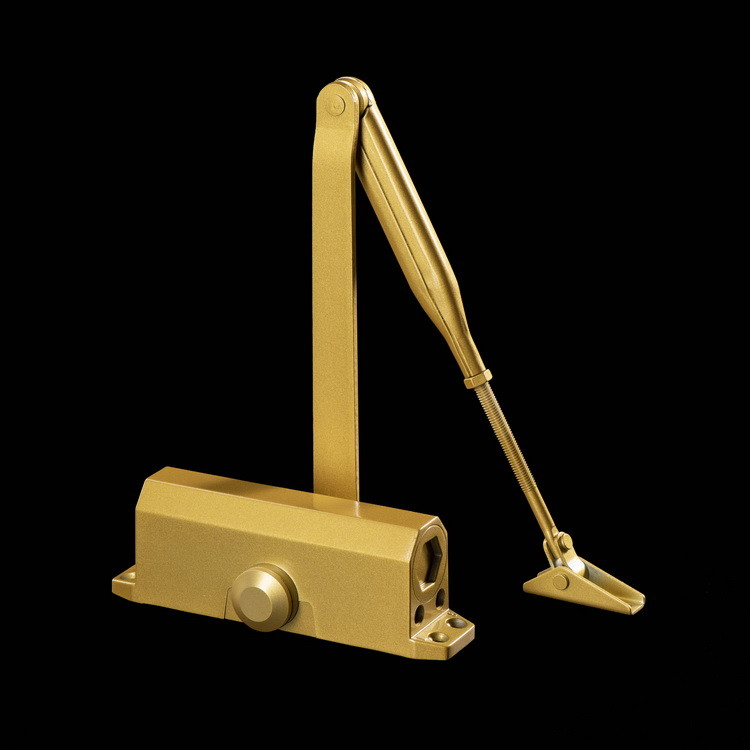

Smooth Overhead Hydraulic Door Closer Size 3 Closing Power For Wooden Door CE Listed

Brand Name : Dorrenhaus, DORHAUS

Model Number : D503

Certification : CE, UL, ISO9001

Place of Origin : Zhejiang, China

MOQ : 100 pcs

Price : USD7.80-USD8.50/PC

Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram

Supply Ability : 20,000pcs per month

Delivery Time : 5weeks

Packaging Details : 1pc in 1 paper box, 10pcs in carton of 445*280*178mm, 40ctns in 1 wooden pallet size: 116*92cm

Product Category : Overhead Hydraulic Door Closer

Door Open Angle : 105º for UL Listed, 180º for CE Listed

Closing Power : size three

Optional Features : Hold Open

Quality Guarantee : 3 years

Temperature Range : -40℃ to 45 ℃

Width Limit : 950mm

Weight Suitable : 40-65kg

Contact Now


    CE Listed Overhead Hydraulic Door Closer Size 3 Closing Power D503


  •     Smooth running, oil tight, without abnormal noise
  •     Dorrenhaus - Focusing on manufacturing door closers
  •     Fixex Size 3, Closing and Latching speed adjustable


     Basic Product Description:

  •   Successfully type tested for conformity to all the requirements of BS EN 1154:1997
  •   DoP: Dorrenhaus-CE-D503-1
  •   Certification: CE Marked: 0757-CPR-231-9007068-1-6;
  •   Included in a successful fire test to BS EN 1634 Part 1.
  •   Assessed for use on 120 minutes timber fire doors.
  •   Certifire Approved: 13-003990-PR03;
  •   Fixed closing power size 3
  •   Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
  •   Function: Closing and latching adjustable
  •   Maximum door weight suitable: 65 kg
  •   Maximum door width applicable: 950 mm


     More Closer Details:


  •   Mechanism function: Fixed power, closing/latching speed adjustable
  •   Mechanism type: Rack & pinion
  •   Maximum door weight applicable: 65 kg
  •   Maximum door width suitable: 950 mm
  •   Material: precised aluminium alloy body with steel Dorma arm
  •   Body Finish: silver, bronze, white, gold, black, brown
  •   Fixed spring force: size 3
  •   Arm finish: silver, bronze, white, gold, black, brown
  •   Arm application: figure 1, 6 and 61
  •   Door type: wooden door
  •   Fixings: wood screws


     ►  Reliable cooperative manufacturer of universal well-known security enterprises




           Finishes - Silver, Bronze, White, Gold, Black, Brown

        * Soft, hands-free closing: let the door finish work, enjoy automatic shutdown
           and lock, maintaining quiet and safety.
        * Spring thrust, easy back: the commercial-grade arm will not impact opening,
           at the same time closing door gradually to allow elegant entrance and exit
        * Trustable Certification: CE EN1154 is the highest standard achievable for door
           closer. This model is actually super passed 500,000+ cycles testing.




Model


Width
Range

Weight
Range

Body Size
(LxWxH)

Installation Dim.


D503


950mm40-65kg

182*41*60.5mm

166*19mm

Max Open
Angle

Quality
Assurance

Fire Rated
Standard


Certification


Factory Tested
Life Cycles

105º - UL
180º - CE

3 years

EN 1634
UL 10C

CE EN1154
UL 228


500,000 - CE
200,000 - UL



Smooth Overhead Hydraulic Door Closer Size 3 Closing Power For Wooden Door CE Listed

Smooth Overhead Hydraulic Door Closer Size 3 Closing Power For Wooden Door CE Listed

Smooth Overhead Hydraulic Door Closer Size 3 Closing Power For Wooden Door CE Listed

Smooth Overhead Hydraulic Door Closer Size 3 Closing Power For Wooden Door CE Listed
