UL Listed Small Door Closer Size 3 , Overhead Door Closer Adjustment Speed

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

UL Listed Small Door Closer Size 3 , Overhead Door Closer Adjustment Speed

  • 1
  • 2

Brand Name : Dorrenhaus, DORHAUS

Model Number : D303S

Certification : UL228, ISO9001:2015

Place of Origin : Zhejiang, China

MOQ : 100sets

Price : USD7.00-USD7.50 per set

Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram

Supply Ability : 20,000sets / month

Delivery Time : 4-5 weeks

Packaging Details : 1set in 1 paper box, 20sets in carton of 430*260*300mm, 24ctns in 1 wooden pallet size: 110*85cm

Master Keyword : Small Overhead Door Closer

Alternative Function : Guide Rail Arm

Suitable Temp. : -40℃ to 45 ℃

Max. Open Angle : 130º

Max. Door Weight : 65 kg

Closing Power : #3

Guarantee Period : 3 years

Width Limit : 950 mm

Contact Now



  UL Listed Small Door Closer Size 3 , D303S Overhead Door Closer Adjusting Speed



  •    Even running, no oil leakage, noiseless
  •    Sinicism style, favourite in Chinese market
  •    UL 3-hour fire certification, safety and reliable

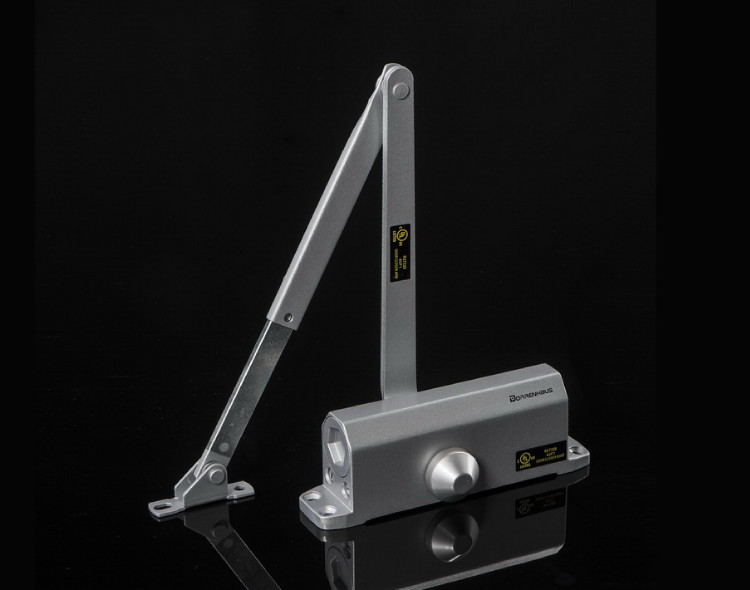

      Dorhaus D303S door closer, with automatic hydraulic structure, small and exquisite,

      it's favourite model in domestic building business, especially for landing-answer door.



      1.  Overhead Small Door Closer UL Listed Fire proof for Residential Door

      2.  Reliable lubricating oil for all weather running and continuing lubrication

      3.  Material: lightweight casting aluminum shell, adjustable steel flat arm

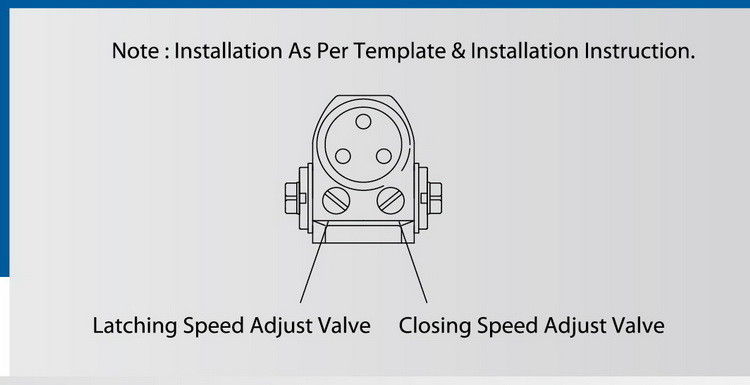

      4.  Closing and latching speed adjusting by dual regulating valves

      6.  Has been investigated by UL according with the standard(s) UL228,

           comply with UL 10C standard, designed for usage with swinging

           type fireproof door rated up to and including 180 minutes.

      7.  Appearance: Traditional Chinese style, Small and Exquisite

      8.  Best for low traffic such as closets, or residential applications

      9.  Non-handed overhead mounting for Regular Arm and Top Jamb

     10. Hydraulic Structure: powder bearing, rack and pinion type



      ► Reliable cooperative supplier of international well-known door closer companies





         Painting - Silver, Bronze, White, Gold, Black, Brown



       * GENTLE, NO MANUAL CLOSING: the door will closer by itself, enjoy self-driven closing

          and latching, maintain quiet and security.

       * SPRING FORWARD, EASY BACK: adjustable steel flat swing arm will not impact opening,

          meanwhile shut doors gradually to allow for graceful entry and exit





Model No.



Width

Range

Weight

Limit

Closer Spec.

(LxWxH)

Installation Dim.



D303S



950mm 40-65kg

167*37*56.5mm

153*19mm

Closing

Power

Open Angle

Range

Tested Life

Cycles

Fire Proof

Standard



Authentication



size 3



90º-130º



300,000 UL 10C - 3h UL 228
