Medium Duty Automatic Hydraulic Door Closer D404 Top Jamb Mounting Slow Close

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

Medium Duty Automatic Hydraulic Door Closer D404 Top Jamb Mounting Slow Close

  • 1
  • 2

Brand Name : Dorhaus, DORRENHAUS

Model Number : D404

Certification : ISO9001:2015

Place of Origin : Zhejiang, China

MOQ : 200 sets

Price : USD5.00-USD35.00 / set

Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram

Supply Ability : 20,000sets per month

Delivery Time : around 35 days

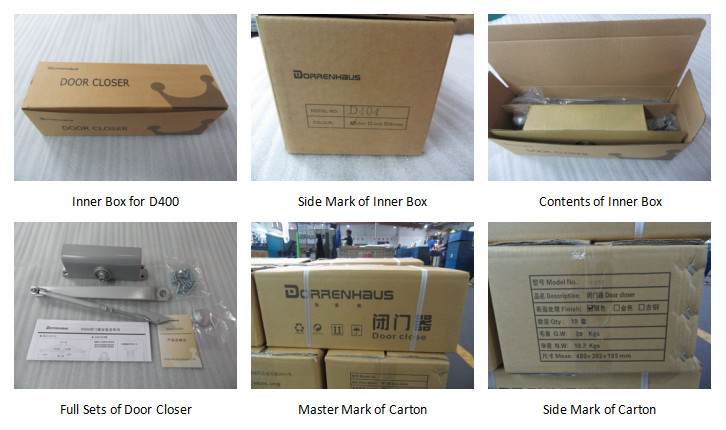

Packaging Details : 1set in 1 paper box, 10sets in carton of 480*302*185mm, 30ctns in 1 wooden pallet.

Main Key Words : Automatic Hydraulic Door Closer

Suitable Temp. : - 40℃ to 45℃

Door Weight : 85kg

Function Optional : Hold-open

Door Open Angle : 115 degree

Width Range : 1100mm

Guarantee Period : 2 years

Closing Force : #4

Contact Now



  Medium Duty Automatic Hydraulic Door Closer D404 Top Jamb Mounting Slow Close



                                     Dorrenhaus - Focusing on manufacturing door closers



          Dorrenhaus self-closing hydraulic door closer model D404 is of moderate

          dimension, medium duty, middle grade quality and cost level. Most of

          the closer characteristic is of middling. It's one of the popular model

          in Chinese domestic building hardware distributor.



      1.  Material: precise cast aluminum closer shell with steel screw thread swing arm

      2.  Full process controlled from the opening power to the lasting latching speed

      3.  Hydraulic door check fluid for any climatic operation and constant lubrication

      4.  Selling Point: Most Popular Model in domestic market, soft and slow close

      5.  Structure: Hydraulic, powder bearing, pinion and rack type

      6.  Automatic sweep & latching speed adjusted by double adjusting screw

      7.  Overhead Hydraulic Door Closer, Fixed size 4 for door width 1100mm

      8.  Appearance: square shape, moderate dimension, elegance and graceful

      9.  Non handed installation, suitable for Regular Arm, Top Jamb mounting

     10. Grade 3 for light traffic applications, such as guest rooms or storage rooms.



      ► Trusted cooperative manufacturer of international top security companies





          Finishes - Painted : Aluminum, White, Bronze, Gold, Black, Brown



        * SPRING THRUST, EASY BACK: steel screw thread swing arm will not impact opening,

           and close the door slow enough to allow for elegant entry and exit

        * ADVANCED WORKMANSHIP: even operating, oil tight, without noise

        * GENTLE, NO NEED TO CLOSE MANUALLY: let the door do the work, enjoy self-driven

           closing and latching, maintain quiet and security.



Closing

Force

Max. Door

Open Angle

Function

Optional

Tested Life

Cycles



Guarantee



size 4 115º



/



200,000 2 years



Model



Door Width

Weight Range

Closer Spec.

(LxWxH)

Mounting

Dimension



D404



1100mm 60-85kg

184*41.5*66.5m

168*24mm
