Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door

Zhejiang Dorrenhaus Hardware Industrial Co., Ltd.
Contact Now

Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door

  • 1
  • 2
  • 3

Brand Name : Dorrenhaus, DORHAUS

Model Number : D904

Certification : CE EN1154, ISO9001

Place of Origin : Zhejiang, China

MOQ : 100sets

Price : USD10.50-USD11.50 / set

Payment Terms : D/P, L/C, , T/T, Western Union, MoneyGram

Supply Ability : 20,000sets per month

Delivery Time : 5 weeks

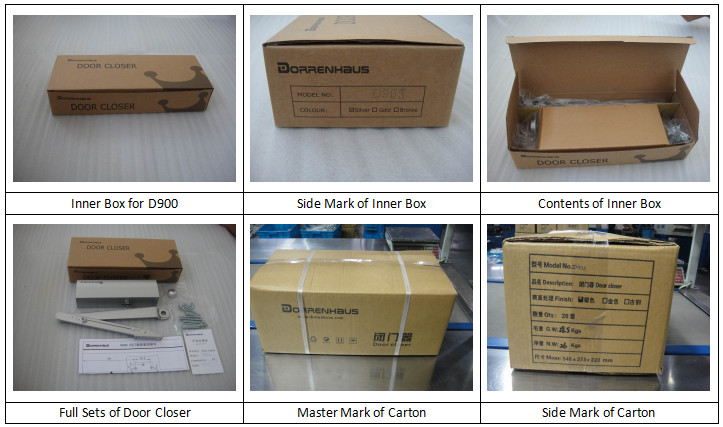

Packaging Details : 1set in 1 paper box, 10sets in 1 carton, 48ctns in 1 wooden pallet size: 116*92cm

Master Keyword : Aluminum Door Closer

Spring Strength : #4

Function Alternate : Back-check, Sliding Arm

Quality Assurance : 3 years

Applicable Temp. : -40℃ to 45℃

Open Angle Range : 180 degree

Width Limit : 1100mm

Applicable Weight : 60-85kgs

Contact Now


   Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door


  •      Pass CE EN1154 Certification & CE EN1634 Certifire
  •      Smooth running, no oil leakage and abnormal sound
  •      Dorrenhaus - Focusing on door closer manufacturing


        Traditional European style, both square and round plate cover is available for
        customer's optional. Precised aluminum closer body with reinforced adjustable
        steel tube arm, needle bearing, rack and pinion with dual heat treatment, all the
        above guarantee the smooth and constant operation for 500,000+ life cycles,
        which is required by CE EN1154 - highest standard for door closer in EU.

        1.  Out Shape:Europe Style, Combine Square with Round, soft in just
        2.  Meet performance test standard EN1154, and flammability standard EN1634
        3.  Medium Size Aluminum Door Closer Closing Speed and Size Fully Controlled
        4.  Material:aluminum casting closer body, with steel flat Arm and aluminum plate
        5.  Full process controlled from the opening power to the latching speed
        6.  Advantages: best-selling European model, elegant appearance moderate price
        7.  Model can be used for commercial and standard residential doors
        8.  Sweep & latching speed regulated by dual separate adjusting screws
        9.  Design for Regular Arm and Top Jamb installation, Parallel Arm optional
       10. Reliable Fuchs brand lubricating oil for all climate operation and lubrication
       11. Product Mix.: Hydraulic structure, needle bearing, rack and pinion type
       12. Fixed size 4, best for 40 - 85kg door weight and 1100mm door width

       ►  7 years cooperative vendors of universal top door control enterprises


            Closer Color - Silver, Gold, Bronze, Brown, White, Black

           * SOFT, NO MANUAL CLOSING : let the door close by itself, enjoy self-acting closing
              and locking, keep quiet and sureness.
           * SPRING THRUST, EASY BACK: commercial-level swing arm won’t interfere with opening,
              meanwhile shut doors gradually to allow for graceful extry and exit


Closing
Power

Door Open
Angle Limit

Fire Proof
Standard

Standard
Life Cycles


Production
Standard


size 4 180º EN 1634 500,000


CE EN1154



Model


Width
Suitable

Weight
Suitable

Closer Spec.
(LxWxH)

Mounting Dim.


D904


1100mm 60-85kg

176*50*38mm

60*38mm


Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door
Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door
Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door

Euro Style Aluminum Door Closer Size 4 Backcheck Round Cover For 85kg Door
