Overhead Aluminum Door Closer Size 4 , Regular Arm Door Closer Jamb Mounted
Dorhaus Aluminum door closer type D404 is of traditional Chinese style, among
door closer of size 4 (suitable for door width 1100mm or door weight 40-85kg),
it's enjoying good sell in domestic door hardware wholesale market, around
4000pcs per month.
1. Material: precision casting aluminum shell and reinforced type steel arm
2. Aluminum Regular Arm Door Closer Medium Duty Overhead Mounted

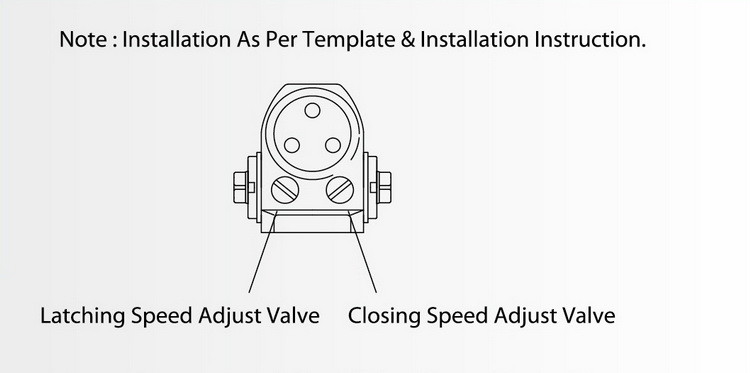

3. Dual Speed Controlled Valves: Sweep and Latching speeds adjusted by
Separate speed regulating screws, adjustable after mounting.
4. Structure: rack and pinion type, powder bearing
5. Out-shape: Chinese style, Elegant Appearance, Steady and generous
6. Durable hydraulic fluid for all weather operation and continuing lubrication.
7. Product Feature: Traditional Chinese Style, but it’s China’s favorite model
8. Suitable for medium working frequency wooden door, such as office meeting
room, school, chamber or club
9. Whole process controlled from door opening force to door latching speed
10. Mounting: suitable for Regular Arm, Top Jamb overhead mounting
► Long-term cooperative manufacturer of international well-known door control companies
Finishes - Silver, Bronze, Black, Brown, White, Gold
* SPRING FORWARD, EASY CLOSING: reinforced type swing arm won’t interfere with
opening, and close the door slow enough to allow for elegant entry and exit
* EXQUISTIE CRAFTSMANSHIP: smooth running, no oil leakage and abnormal sound
* GENTLE, NO NEED TO CLOSE BY HAND: let the door close by itself, enjoy automatic
closing and latching, maintaining quiet and security.
| Model No. | Width Suitable | Door Weight | Closer Body (LxWxH) | Mounting Dim. |
| D404 | 1100mm | 60-85kg | 184*41.5*66.5mm | 168*24mm |
| Spring Force | Door Open Angle | Quality Guarantee | Average Life Cycles | Product Standard |
| size 4 | 115º, 150º for hold open | 24 months | 200,000 | GA93-2004 |
